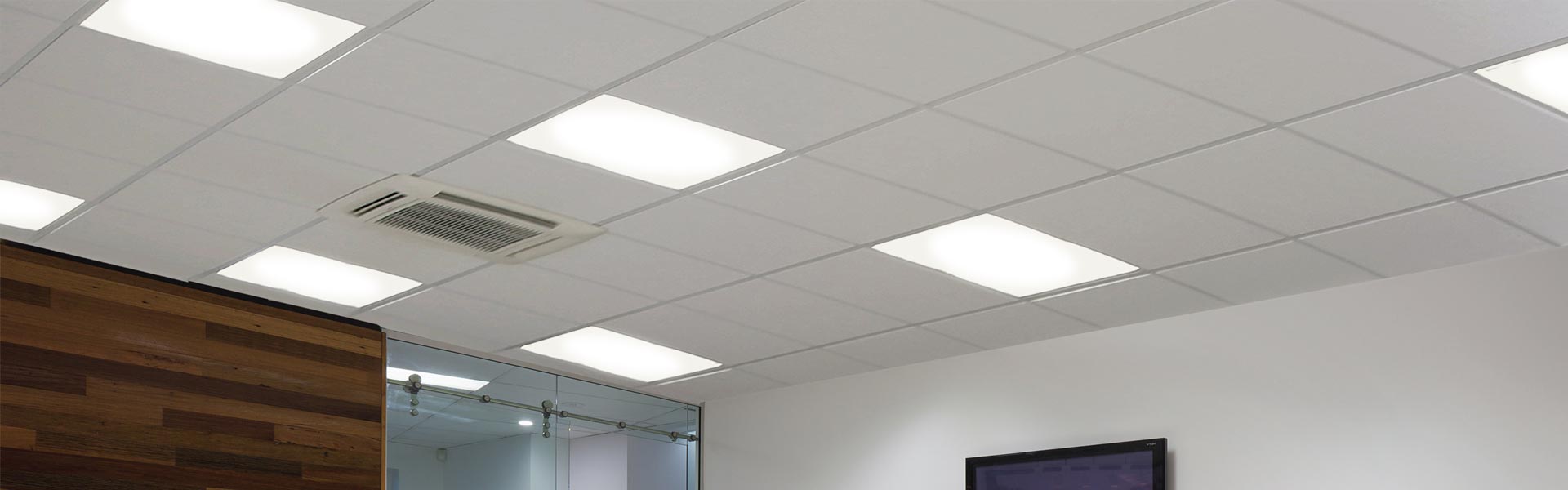

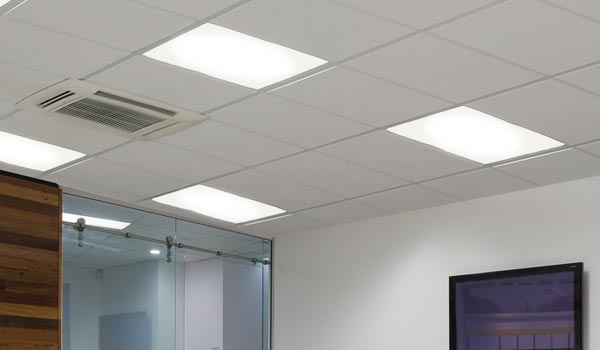

Drop Ceiling Applications
Replacing artificial lighting with bright, natural daylight of a tubular skylight is smart investment for offices with acoustic ceilings. Our drop ceiling model features a white aluminum transition box that is sized to accommodate standard drop ceiling systems.
Installing daylighting provides cost savings as well as worker benefits. It significantly reduces the need for electric lighting and run-time on HVAC systems saving on energy costs. Energy efficient buildings also increase property value making them easier to rent or sell quickly. It also provides invaluable benefits for workers including improved productivity, performance, attitude, reduces light strain, lifts mood and so much more.
COMMERCIAL
Drop Ceiling Tubular Skylight
21" Acoustic Ceiling Model
Warehouse Model Overview
Manufactured using Quality Components more about Components
Available Accessories see Accessories
Drop/Acoustic Ceiling Model Specs

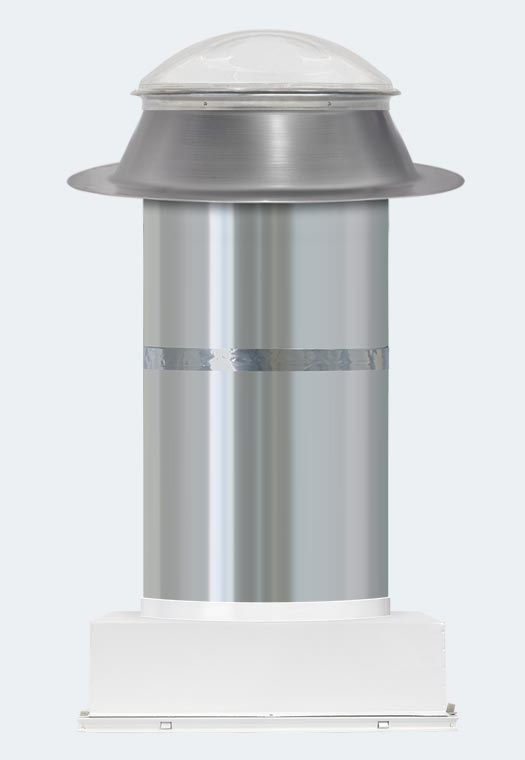

21" Flat Roof Kit
Model #: | 21KFF |
Coverage: | up to 700 sf |
Wattage: | up to 1,450 sf |
Kit Height: | 4 feet |
Max Length: | 20 feet |
Roof Slope: | up to 2:12 |
Color: |

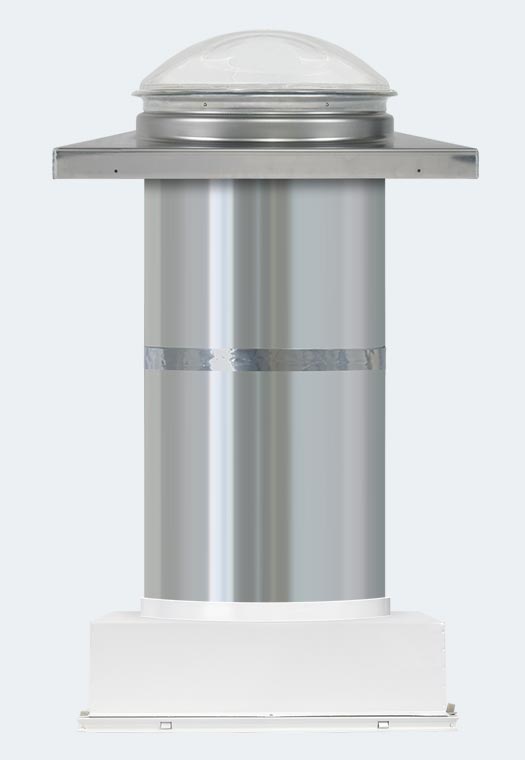

21" Curb Mount Kit
Model #: | 21KFCM |
Coverage: | up to 700 sf |
Wattage: | up to 1,450 sf |
Kit Height: | 4 feet |
Max Length: | 20 feet |
Installs over: | pre-built curb |
Color: |
EASY INSTALLATION: Natural Light tubular skylights installation requires no structural changes or wiring. We have authorized installers nationwide. Contact us to find one near you.
Installation Cutaways

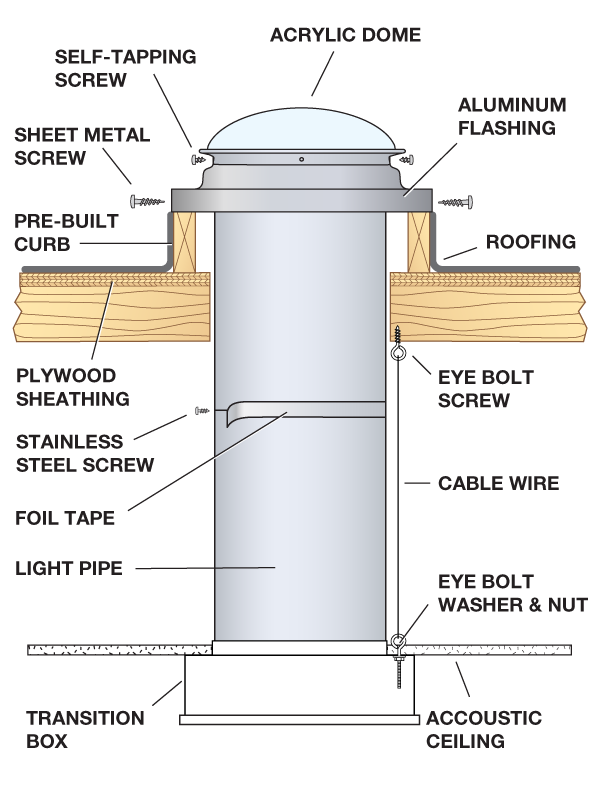

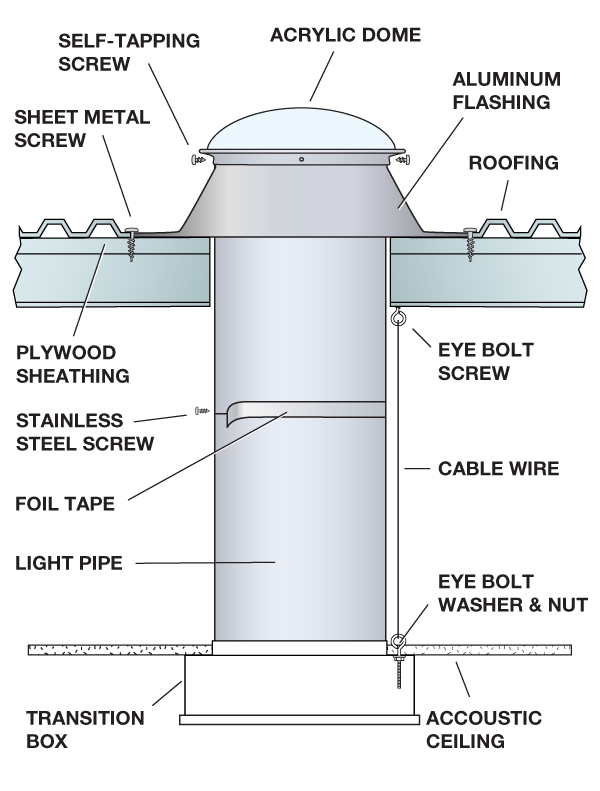

Installation procedures vary between the curb mount and flat roof models. Pictured are typical installations for both mounting types including all components and hardware. Please follow the detailed instructions for your model and roof type.
DROP CEILING FLAT ROOF
DROP CEILING CURB MOUNT
Warranty & Certifications
MADE IN USA
with US & Global Parts
